What is Mini-LED?

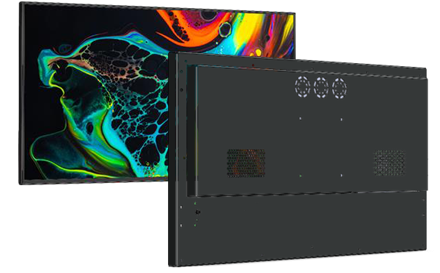

The innovative technology is applied to the Mini-LED monitor by utilizing small LEDs for backlighting instead of using one large backlight. In other words, a Mini-LED monitor is a type of LCD that uses smaller LED backlights on the LCD panel. So, Mini-LED is much brighter than traditional LEDs. When examining BSI’s 27” Mini-LED monitor in detail, it supports a High Dynamic Range (HDR) of over 1000+, with peak brightness exceeding 1000 nits. Additionally, it reduces the halo effect with more than 1000 local dimming and provides richer color volume by maximizing DCI-P3 color coverage to more than 98%, enhancing picture quality. It supports a high resolution of 3840 x 2160 (UHD and 5K). With its superior brightness and high contrast, Mini-LED is an ideal option for HDR content, surveillance, gaming, casinos, medical industries, and industrial applications.

Key Features:

• High Dynamic Range (HDR) with over 1000+ local dimming
• DCI-P3 color coverage to over 98%

1. Native Resolution: 3840 x 2160 (UHD and 5K)

• High contrast ratio with deep black and high brightness
• Reduced halo effect

Mini-LED vs. LCD: Why It's Better Option than LCD?

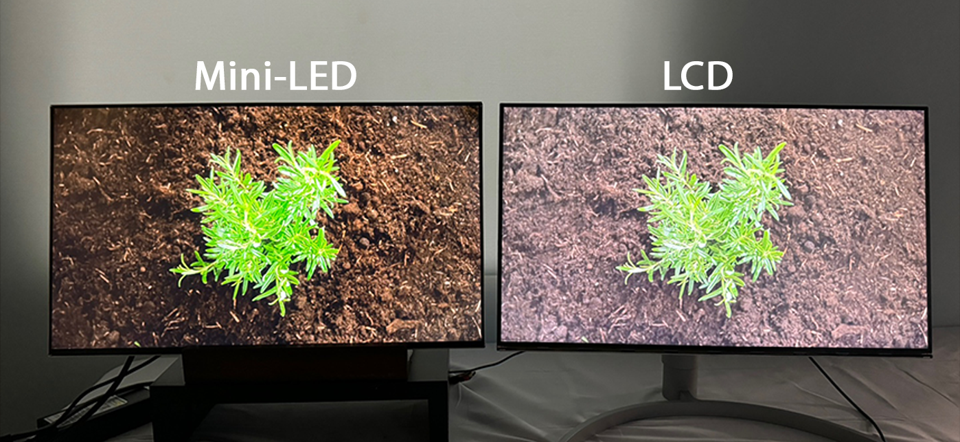

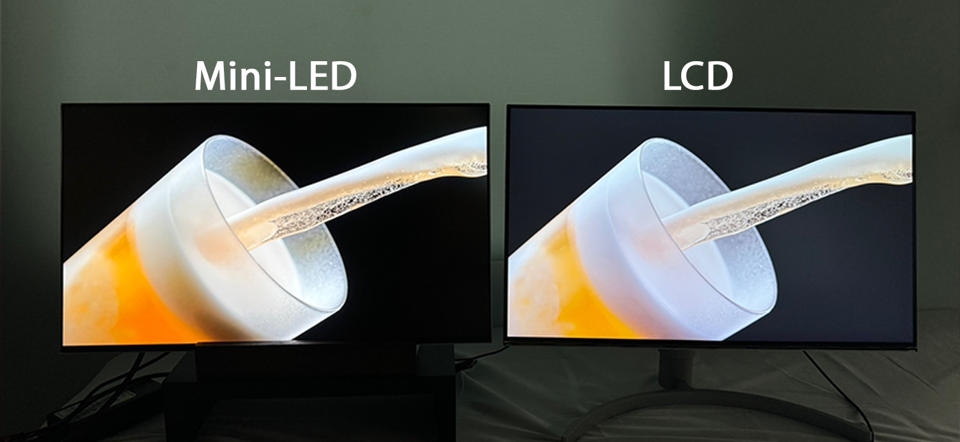

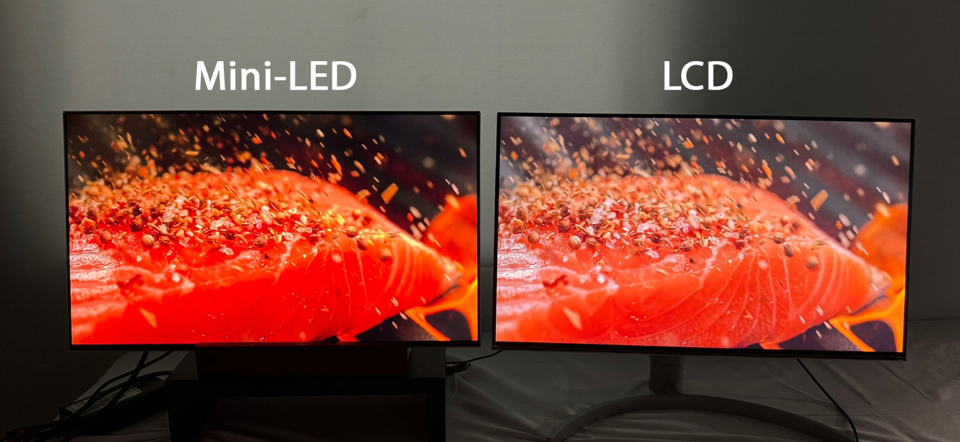

The following three images from BSI Below present how the quality of the Mini-LED monitor differs from that of a traditional LCD monitor. The left monitor showcases the 27” Mini-LED monitor, highlighting its vivid colors, superior contrast, and remarkable clarity compared to the right monitor. When looking at image 1, it is just a picture, but the viewer can sense lively motion due to its wider color range, deep black, and bright whites.




Where to Apply Mini-LED:

Given these advantages, Mini-LED is highly recommended for military surveillance tasks, including detecting, locating, identifying, and monitoring targets. With its support for a high contrast ratio, Mini-LED enables monitoring rooms to easily and effectively detect objects. In addition to military applications, Mini-LED can be adapted for the medical industry, which requires high contrast, color saturation, and brightness for medical monitors and emergency vehicles. The gaming industry also benefits from Mini-LED, as it reduces motion blur and supports HDR 1000 and high resolution. Furthermore, Mini-LED is an excellent choice for casino displays, providing a more immersive gaming experience for players. Beyond casino machines, it can also enhance visual displays in surrounding casino entertainment areas.

Applications: The military, medical, gaming, and casino industries are appropriate for Mini-LED usage.

Mini-LED Boards:

The BSI Mini-LED Board package includes both the Main Board and Mini-LED driver, designed to be compatible with LG Display 31.5” and 27” models, as well as Innolux 17.3” and 13.3” models. The main board is an advanced TFT LCD Monitor Control Board. This design enables a full conventional LCD Monitor and video& audio replacement with a large size Active-Matrix LCD module. The Mini-LED driver is suitable for a 27-inch Mini-LED with 1,560 block and can be modified with a different number of blocks.

Compatibility

• LG Display: LB315WR4-SJA1 (31.5”) and LM270WR8-SSE1 (27”)
• Innolux: GK173VB-01B (17.3”) and GK133VB-01A (13.3”)

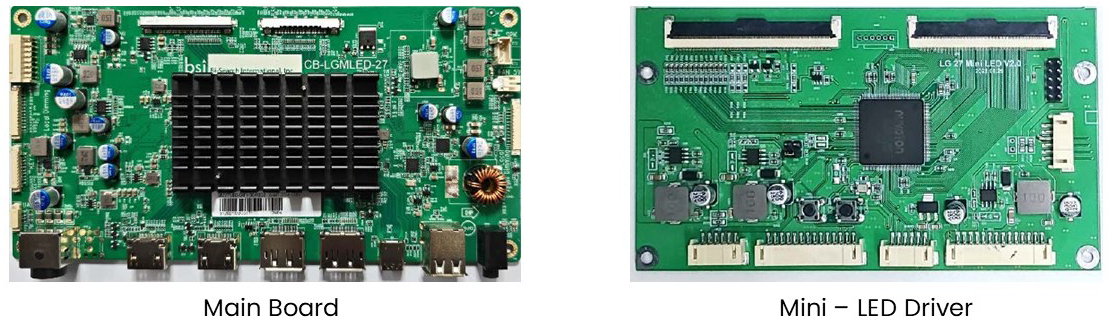

Here is Mini-LED Board image.
